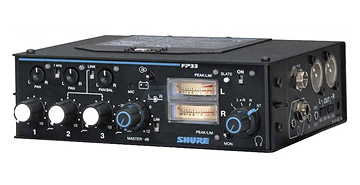

Mixer Shure FP-33

FP - 33MIXER FOR EXTERNAL It is a portable stereo mixer with 3 inputs, 2 outputs, designed specifically for remote recording of audio, studios, external or filming. It has high quality sealed potentiometers, very low internal noise and dynamic range greater than 100dB, which makes it suitable for use with DAT. It has 48V phantom power, 12V power, and 12V T power (A-B). It has LED indicators for input levels, output peaks, limiter action, and battery charge. Includes built-in pan pots and a wrench for attaching inputs 2 and 3 forming a stereo input. The Mix Bus allows you to interconnect another FP33 or an FP32A. The headphone monitor control includes a stereo array of MS headphones. It can be programmed, by internal DIP switches, to more than 4,000 configurations. CHARACTERISTICS Designed to provide exceptionally low noise, suitable for use with DAT and other digital formats Frequency response from 20 Hz to 20 kHz Dynamic range greater than 100 dB Balanced transformer inputs and outputs for superior RFI rejection and electromagnetic buzz Three selectable mic / line inputs Two selectable mic / line outputs Wide range of input gain controls that accept high level of signal without attenuator 48 V phantom, 12 V phantom and 12 V microphone power supply (A-B) Pan-pots for inlay Key to pair inputs 2 and 3 to control a stereo microphone High pass-through filters at each input Two-color signal presence LED and peak indicator on each input Professional VU meters with selectable, timed or on / off lighting Dual Master gain control for simultaneous or separate setting of output levels Two-color limiter LED and peak indicator on each output Two interlocking output peak limiters with threshold setting and release time Built-in microphone with adjustable tone and selectable functions Bidirectional isolated talk-back using monitor input and modified recording output connector / built-in microphone High-tolerance 3.5mm connectors for stereo recording output and monitor input 1 kHz oscillator Mixing bus connector and cable to connect an FP33 or FP32A mixer Monitor mode selector switch to select L, L + R (Mono), R or Stereo Built-in headphone level adjustments to balance post-master audio levels and monitor input on headphone output M / S decoder circuit selectable for headphones monitor. Key Mixer / Monitor (with lock and momentary) Internal monitor cancellation switch for two signal operation on headphones Headphone volume control 1/4 "and 3.5 mm connectors for stereo headphone jacks. Custom operation via internal microswitches, trimpots, slide switches and optional jumpers Regulated power supply lines (± 15 Vdc) provide exceptional Two color LED on / off Battery test key and low battery warning LED External non-polarized power outlet Operates with external power from 12 to 30 Vdc Color-coded touch control buttons with drop-down indicator XLR input and output metal connectors Heavy Duty Galvanized Metal Chassis Operates 8 hours with two 9V alkaline batteries Includes a mixing bus cable Google Translate for Business:Translator ToolkitWebsite TranslatorGlobal Market Finder
